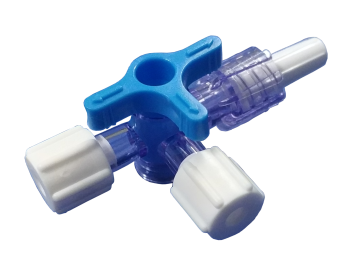

Three Way Stopcock
The ABLE®Disposable Stopcocks are made of medical grade polycarbonate and HDPE. It consists of the base, rotary core, lock fittings, protection cap and multiply-connected plates.
A stopcock is a form of valve used to control the flow of a liquid or gas. The term is not precise and is applied to many different types of valve. The only consistent attribute is that the valve is designed to completely stop the flow when closed fully.
FEATURES
- The product enhance precision in fluid management
- Medical-grade plastic (e.g., polycarbonate), Lipid-resistance
- Transparent body for visual fluid monitoring
- Standardized screw-threaded fittings to secure syringes/tubing and prevent leaks
- Bidirectional flow allows aspiration (withdrawal) or infusion (delivery) of fluids.
- Various version to satisfy as much as cinlical application
Round or Triangle Hub
Double, triple and quad lumen catheter have round or triangle hub for choice.
Soft Tip
Soft tip reduces trauma to vessel, minimizing vessel erosion, hemothorax and cardiac tamponade. Single, double, triple and quad lumen is available for choice.
ECG Cable
ECG Cable is avalaible.
Depth Making
Depth marking assists in accurate placement of central venous catheter from the right or left subclavian or jugular vein.
Radiopacity
Radiopacity facilitates confirmation of catheter placement. The multi-lumen version's tips are more radiopaque, which makes it easy to confirm the placement of fluoroscopic tip.
Antibacterial CVC
The tubing is made from polyurethane which mixed with silver-containing zirconium phosphate at nanometer level, when the catheter is placed into the body, Ag+ will be released to inhibit bacteria growing.

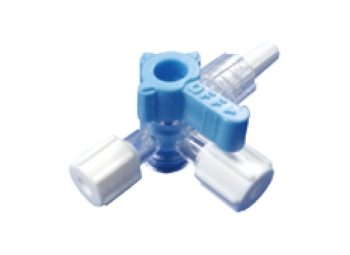

Standard three way stopcock
Standard Kits include:
1. Clarity appearance for easy to observe exhaust and increase security of infuse.
2. Not produce vortex and reduce thrombus.
3. Firm and easy connection without interruption when converting the fluid flow direction.
4. Good design and easy operation. Arrows clearly indicate the flow direction.
5. Reliable pressure-resistant property allows safer pressure infusion and blood pressure monitoring.
6. Color coded handle for easy identification (Blue-Vein, Red-Artery).
7. Drug resistant types are available.
8. With or without extension tube.

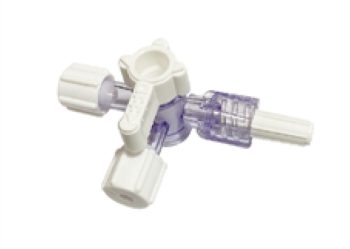

Rotating three way stopcock
1. Medical grade polycarbonate material with good lipid resistance and chemical resistance.
2. Multiple channels for multiple infusion therapy.
3. The Male Luer Lock can be freely rotated 360° to minimize line disconnections.
4. Designed to withstand pressure up to 3 bars.
6. Arrows clearly indicate the flow direction.
7. New rotating stopcock allows multiple flexible connections, so that to
orientate the stopcock in a more flexible manner.
High pressure three way stopcock
1. Pressure resistance not less than 300psi withstands typical IV/injection pressures
2. Reinforced Construction and Material; Secure Sealing Mechanism
3. Pressure-Optimized Flow Path: Smoothed internal channels to reduce turbulence and resistance during rapid injections.
4. Clinical Applications:
Radiology: Power-injected contrast media in CT, MRI, or angiography.
Interventional Cardiology: High-pressure saline/contrast flushing during cardiac cath.
Critical Care: Vasopressor infusions or arterial pressure monitoring.
Vascular Surgery: Controlled injection/aspiration in high-flow systems.
High flow three way stopcock
1. Optimized Flow Dynamics
Wide-Bore Lumens: Internal channel diameter ≥ 4.0 mm (vs. ~2.5 mm in standard stopcocks).
Speed: Engineered to sustain flow rates ≥700 mL/min, up by 50% compared to standard one, cuts fluid delivery time by 50–70% in emergencies
Smoothed Internal Geometry: Minimizes turbulence (reduced Reynolds number) to prevent hemolysis.
2. High-Flow Material Design
Medical-Grade Polymers: Polycarbonate for clarity + impact resistance.
Reinforced Housing: Resists cracking under high-flow pressure surges.
3. Clinical Applications:
Trauma/Emergency: Massive transfusion protocols (MTP), rapid crystalloid infusion.
Radiology: High-volume contrast delivery in CT/MRI (e.g., 5+ mL/sec injections).
Surgery: Cardiopulmonary bypass, cell salvage systems.
ICU: Rapid fluid resuscitation in sepsis/shock.
SPECIFICATIONS
Packing details:
Primary packaging: Composite film blister heat sealed with TYVEK paper.
Secondary packaging: Single layer corrugated paper.
Tertiary packaging: Double walled corrugated board.
| Number of pieces | Dimensions | G.W. | |
| Box | 50 | 21.5*15.5*10CM | 0.4kg |
| Mid Carton | 1000 | 44*34*53CM | 7.7kgs |
| Shipping Carton | 2000 | 45*72*55CM | 17kgs |
| Manufacturer codes | Product | Product description |
| FS-3001 | Three way stopcock | Standard Three way stopcock Lipid res. Red |
| FS-3002 | Standard Three way stopcock Lipid res. Blue | |
| 00X-FS-3002 | Rotating Three way stopcock Lipid res. Blue | |
| 00G-FS-3002 | High pressure Three way stopcock Lipid res. Blue | |
| 00D-FS-3002 | High flow Three way stopcock Lipid res. Blue | |
| FS-6212 | Three way stopcock with ext line | Standard Three way stopcock blue Lipid res. with ext line in PU – ID1.0mm x OD2.7mm – length 10cm |
| FS-6222 | Standard Three way stopcock blue Lipid res. with ext line in PU – ID1.0mm x OD2.7mm – length 15cm | |
| FS-6232 | Standard Three way stopcock blue Lipid res. with ext line in PU – ID1.0mm x OD2.7mm – length 25cm | |
| FS-6242 | Standard Three way stopcock blue Lipid res. with ext line in PU – ID1.0mm x OD2.7mm – length 50cm | |
| FS-6252 | Standard Three way stopcock blue Lipid res. with ext line in PU – ID1.0mm x OD2.7mm – length 100cm | |
| FS-6262 | Standard Three way stopcock blue Lipid res. with ext line in PU – ID1.0mm x OD2.7mm – length 120cm | |
| FS-6272 | Standard Three way stopcock blue Lipid res. with ext line in PU – ID1.0mm x OD2.7mm – length 150cm | |
| FS-7412 | Standard Three way stopcock blue Lipid res. with ext line in PVC (DEHP free) – ID2.2mm x OD3.6mm – length 10cm | |
| FS-7422 | Standard Three way stopcock blue Lipid res. with ext line in PVC (DEHP free) – ID2.2mm x OD3.6mm – length 15cm | |
| FS-7432 | Standard Three way stopcock blue Lipid res. with ext line in PVC (DEHP free) – ID2.2mm x OD3.6mm – length 25cm | |
| FS-7442 | Standard Three way stopcock blue Lipid res. with ext line in PVC (DEHP free) – ID2.2mm x OD3.6mm – length 50cm | |
| FS-7452 | Standard Three way stopcock blue Lipid res. with ext line in PVC (DEHP free) – ID2.2mm x OD3.6mm – length 100cm | |
| FS-7462 | Standard Three way stopcock blue Lipid res. with ext line in PVC (DEHP free) – ID2.2mm x OD3.6mm – length 120cm | |
| FS-7472 | Standard Three way stopcock blue Lipid res. with ext line in PVC (DEHP free) – ID2.2mm x OD3.6mm – length 150cm |
